Architecture

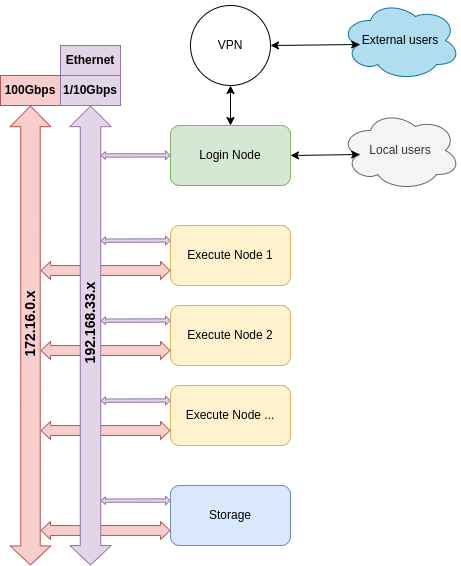

Physical connection

Physical connection

  • IP adresses:

    • Headnode: cluster-hn

      • br1: 192.168.33.5
      • br2: 172.16.0.5

    • Compute node: cluster-gn[1/2/3/..]

      • br0: 172.20.0.[10 + Node ID]
      • br1: 192.168.33.[10 + Node ID]
      • br2: 172.16.0.[10 + Node ID]

    • Virtual node: cluster-vgn[1/2/3/..]

      • br0: 172.20.0.[100 + i]
      • br1: 192.168.33.[100 + i]
      • br2: 172.16.0.[100 + i]
